Strategy: FedProx#

FedAvg v.s FedProx#

Heterogeneity

FedAvg

FedProx

data heterogeneity

FedAvg does not guarantee fit for non-iid data

FedProx can guarantee the fitting rate for non-iid data: by changing the objective function of the overall optimization, based on an assumption of distribution difference, a convergence proof is obtained

device heterogeneity

FedAvg does not take into account the heterogeneity of different devices, such as differences in computing power; for each device, the same workload is scheduled

FedProx supports local training for each device with different workloads: adjust the accuracy requirements for local training per device by setting a different “γ-inexact” parameter for each device in each round

Fit#

Add Proximal Term to the objective function

$$ \mathop{max}\limits_{w} h_k(w;w^t)=F_k(w)+\frac{\mu}{2}||w-w^t||^2 $$

$F_k(w)$: For a set of parameters w, the loss obtained by training k local data on device k

$w^t$: The initial model parameters sent by the server to device k in the t-th round of training

$\mu$: a hyperparameter

$\mu/2||w - w^t||^2$: proximal term, which limits the difference between the optimized w and the $w^t$ released in the t round, so that the updated w of each device k is equal to Do not differ too much between them to help fit

Different training requirements for each device: γ-inexact#

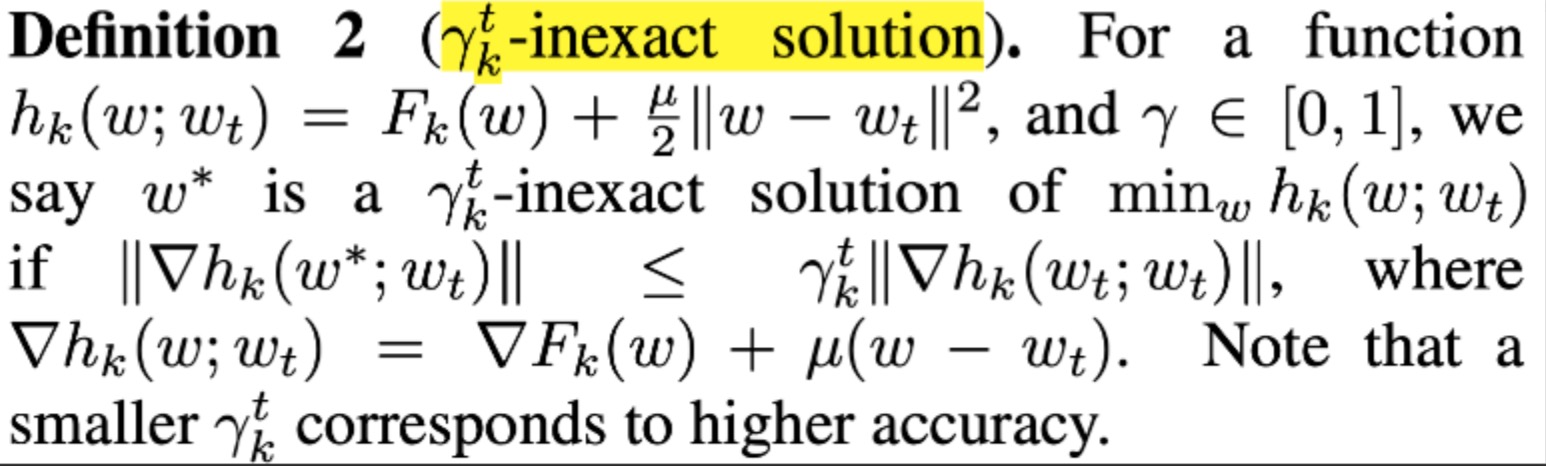

definition_2

FedAvg requires that each device is fully optimized for E epochs during training locally; Due to equipment heterogeneity, FedProx hopes to put forward different optimization requirements for each equipment k in each round t, and does not require all equipment to be completely optimized;

$\mu_k^t \in [0,1]$, the higher the value, the looser the constraints, that is, the lower the training completion requirements for equipment k; on the contrary, when $\mu_k^t = 0$, the parameters are required the training update is 0, requiring the local model to fully fit;

With the help of $\mu_k^t$, the training volume per round of each device can be adjusted according to the computing resources of the device;

Requirements for parameter selection in Convergence analysis#

When the selected parameters meet the following conditions, the expected value of the convergence rate of the model can be bound

Parameter conditions#

$$ \rho^t=(\frac{1}{\mu}-\frac{\gamma^tB}{\mu}-\frac{B(1+\gamma^t\sqrt(2))}{ \overline\mu\sqrt(K)}-\frac{LB(1+\gamma^t)}{\overline\mu\mu} - \frac{L(1+\gamma^t)^2B^2} {2\mu^2}-\frac{LB^2(1+\gamma^t)^2}{\mu^2K}(2\sqrt{2K}+2)) $$

There are three groups of parameters to set: K, $\gamma$, $\mu$; Where K is the number of client devices selected in the t round, $\gamma^t=max_k(\gamma_k^t)$, $\gamma$, $\mu$ is the hyperparameter for setting the proxy term. B is a value used to assume the upper limit of the current participation data distribution difference, not sure how to get it

Fitting rate#

Convergence can be proven if the parameters are set to meet the above requirements

Sufficient and non-essential conditions for parameter selection#

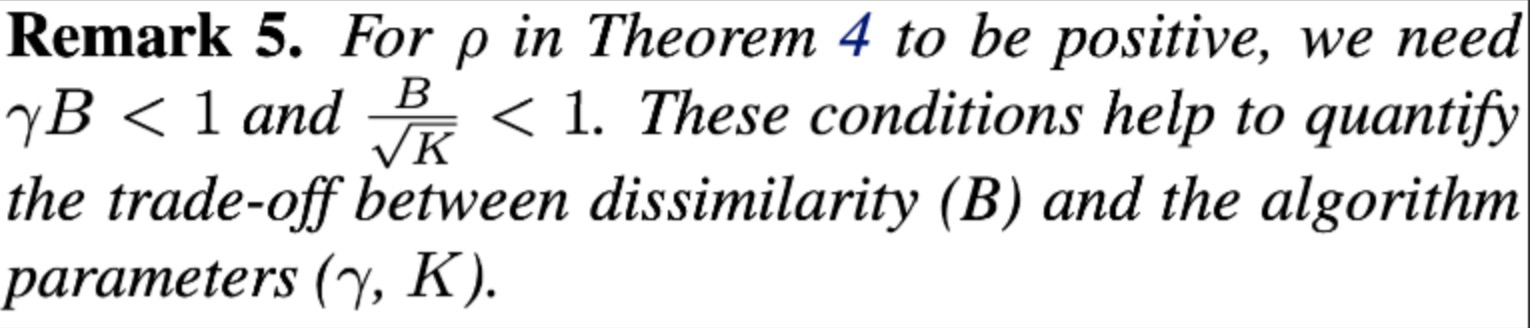

remark_5

There is a tradeoff between $\gamma$ and $B$. For example, the larger $B$ is, the greater the difference in data distribution, the smaller the $\gamma$ must be, and the higher the training requirements for each device;

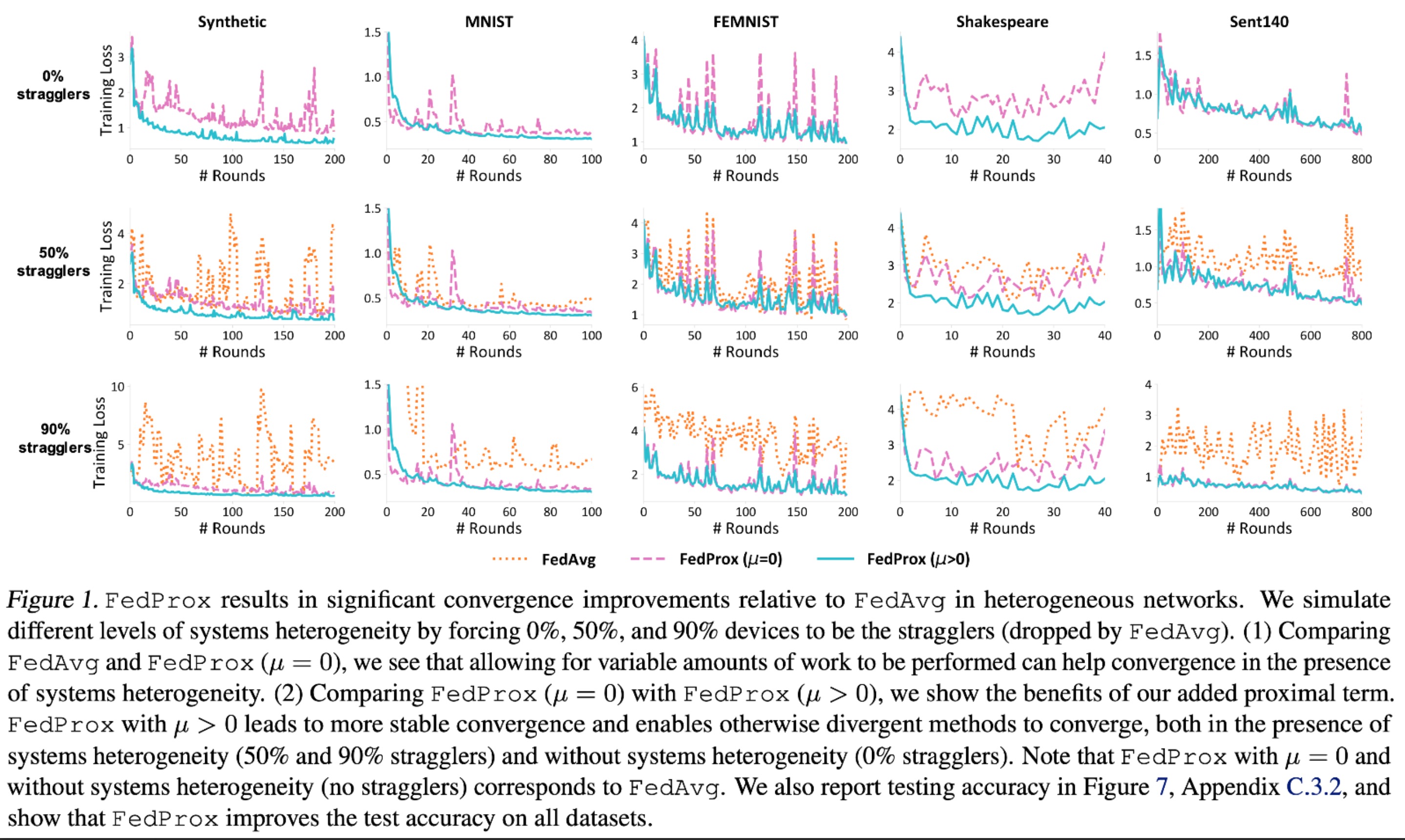

Experiment 1: Effectiveness of proximal term and inexactness#

figure_1

Summarize#

The existence of $\gamma$ and $B$ is more theoretical, in practice, the workload of the device can be determined directly according to the device resources

Implementation#

  1. The proxy term for data non-iid has been implemented;

  2. The inexactness for device heterogeneity needs to be realized;

Reference#

Federated Optimization in Heterogeneous Networks
